W 454

The modular and flexible high voltage tester

The W 454 Cable Tester and Functional Tester offers high voltages up to 2,250 VDC / 1,500 VAC and current levels up to 3 A to test cables, cable harnesses, harnesses and components for example in the aerospace industry, in medical technology industry and in the railway industry.

This test system allows for continuity tests in the Milli-Ohm range, insulation measurements in the Giga-Ohm range as well as measurement of components like resistors, capacitors, inductors and relays.

High performance for a broad range of applications

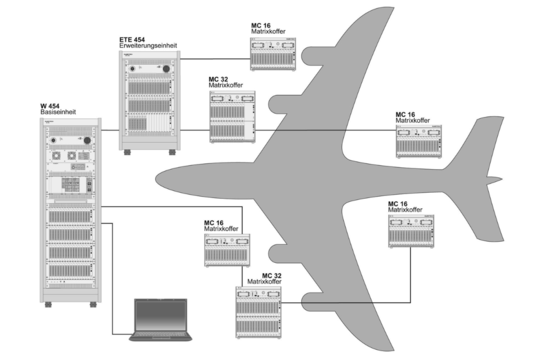

Almost unlimited number of test points in a distributed matrix
Modular system architecture for an optimized adaptation to the test requirements

Programmable power-/current supplies with up to 3 A and up to 2,250 VDC / 1,500 VAC
Various generators for high current applications up to 25 A available
External generators for functional tests with up to 125 VDC / 250 VAC capable of being integrated
Exact resistance measurement from 3 mOhm

Up to 500,000 test points possible
Efficient ETE 454 expansion units with external electricity supply in various sizes and types
Compact, weight-optimized matrix cases allow for an operation according to DIN EN 2283 (Testing of aircraft wiring) inside the aircraft
Short adapter cables
- Simplified adaption of the unit under test (UUT)
- Improved work safety
- Enhanced measurement precision compared to long adapter cables

Flexible equipment with test point modules of different specifications to enable a cost-optimized configuration
Hybrid modules where the test points can be used per test step either as test points or as power points to switch external voltages
Combi modules where pins can be used as test points and power points at the same time
RLC meter to measure any combination of resistance (R), inductance (L) and capacity (C) with programmable frequencies
Tailor-made components for special test requirements as well as other special equipment available on request

Automated test program development even for complex functional test requirements by using a component library
Graphical display of the net list
Innovative ID-chips allow for random connecting of an adapter cable to any output connector
- No time-consuming assignment of plugs
- No errors because of false connections
